This guide covers everything you need to know to prepare utility patent drawings that meet USPTO requirements, avoid common errors, and increase your application's chances of approval.

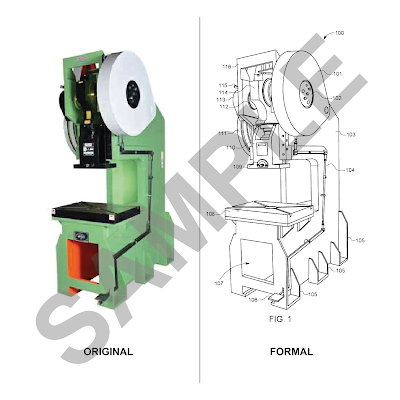

What Are Utility Patent Drawings?
Utility patent drawings are visual illustrations that support the written portion of a patent application. They show the structure, function, and configuration of an invention. Drawings help patent examiners understand how the invention works, making them almost always required.
You must include a drawing if:
- The invention has a mechanical structure or moving parts
- The components are better understood visually
- The examiner needs visual references for clarity
Common Drawing Types
- Perspective views: 3D representations to show spatial orientation
- Exploded views: Disassembled components, ideal for complex machinery
- Cross-sectional views: Interior design of enclosed parts
- Flowcharts: For software or process patents
- Schematic diagrams: Electrical inventions or circuits
Each element in the drawing must be clearly labeled and match the numbered references in the written specification.
The goal is not artistic expression but technical clarity.
USPTO Requirements for Utility Patent Drawings
The United States Patent and Trademark Office (USPTO) has strict standards to ensure clarity, consistency, and reproducibility of patent drawings.
USPTO Drawing Specifications
| Parameter and Requirement |
|
|
|
|
|
|
Avoid:
- Color, grayscale, or shading (unless pre-approved with a petition)
- Overlapping lines or blurred resolution
- Excessive or missing text
- Dimensions or perspective distortion
Key Tip:
Every feature shown in the drawings must be mentioned in the detailed description section of your patent application.
Tools and Software for Creating Utility Patent Drawings
You can create USPTO-compliant drawings using either software or manual methods. Each has advantages depending on your experience level and needs.
CAD Software Options
Computer-Aided Design (CAD) tools provide high precision and export-friendly formats.
Recommended software:
- AutoCAD: Trusted for mechanical and architectural drawings
- SolidWorks: Ideal for detailed mechanical components and assemblies
- CorelDRAW: Versatile for line art and annotations
- Adobe Illustrator: Preferred for 2D vector drawings
- FreeCAD: Open-source option for budget-conscious inventors
Benefits of CAD:
- Easy to revise drawings
- Accurate line control and labeling
- Compatible with USPTO electronic submission systems
Pro Tip: Use layers for different views or exploded diagrams for easy editing later.
Manual Drawing Techniques
Manual drawings are still accepted but must be neat and precise.
Tools to use:
- Technical pens (fine-tip)
- Rulers, French curves, compasses
- High-quality, acid-free drafting paper
- Erasers and drafting templates
Digitize your final drawing using a scanner at 300 DPI or higher. Avoid shadows or distortion in scanned copies.
Manual drawing works best for simple mechanical inventions or when digital tools aren’t accessible.
Formatting Guidelines and Common Mistakes to Avoid
Drawing rejection is one of the top causes of application delays. Here’s how to stay compliant:
Formatting Checklist
- Drawings use only black ink
- Paper size and margins match USPTO rules
- No grayscale, color, or shadows
- Arabic numerals used for all references
- Fonts are legible and consistent
- Each figure labeled as Fig. 1, Fig. 2, etc.
- All parts in the drawing are described in the specification
Common Mistakes
- Submitting hand-drawn sketches with poor line quality
- Leaving out margin space or exceeding size limits
- Inconsistent labeling between figures and written description
- Including unnecessary text
- Using photos or color images without USPTO approval
Case Example:
An applicant for a medical device patent submitted grayscale images with inconsistent labels. The USPTO issued a Notice to Correct Application Papers, delaying the process by four months.
Should You Hire a Professional Patent Illustrator?
Hiring a patent illustrator can be a smart investment, especially for complex inventions. These professionals understand USPTO requirements and industry expectations.
Advantages of Using a Professional
- Drawings meet technical specifications
- Reduced risk of rejections or rework
- Saves time and speeds up the patent process
- Better representation of complex mechanical features
Example:
A startup developing a mechanical locking mechanism hired a professional illustrator. The resulting drawings clarified each internal component. Their patent was approved within 14 months with no drawing-related objections.
Cost Range:
$75 to $200 per drawing sheet depending on complexity, revisions, and turnaround time.For inventions with multiple parts, cross-sections, or moving systems, hiring a pro is often worth the expense.
Final Submission Tips for USPTO Patent Drawings
You’ll submit your utility patent drawings through the USPTO Patent Center or EFS-Web portal.
Steps Before Submitting
- Review drawings using the USPTO’s checklist
- Match all numbers in your drawing to the written description
- Ensure drawings are in PDF or TIFF format (USPTO-approved)
- Name files correctly (e.g., “Drawings_Page1.pdf”)
- Keep layered source files in case of revisions
Tip: If you're filing internationally (e.g., under the PCT), check if other jurisdictions have additional formatting requirements.
Reminder: Even minor noncompliance—like wrong margins or missing figure labels—can lead to costly delays.
Frequently Asked Questions (FAQs)
1. Are utility patent drawings mandatory?
Yes, in most cases.
If your invention can’t be fully understood through text alone, drawings are required.
2. Can I submit photographs instead of drawings?
Only if the subject cannot be drawn (e.g., cell cultures or chemical compounds).
Even then, you must file a petition for color or photographic images.
3. Can I use 3D renderings from modeling software?
Yes, but they must be converted to line drawings that comply with USPTO requirements.
3D renderings with shading or gradients are not allowed.
4. How many figures should I include?
Include as many as needed to show all elements of the invention.
Most applications include 4 to 12 figures, depending on complexity.
5. What happens if my drawings are rejected?
You’ll receive a notice to Correct Drawings.
You’ll need to revise and resubmit compliant drawings, which can delay your patent review.
Conclusion: Clear Drawings Lead to Stronger Patents
Utility patent drawings are more than illustrations—they’re essential components of your application. Well-prepared drawings reduce misunderstandings, support your claims, and move your application forward faster.
Whether you create them yourself or work with a professional illustrator, always follow USPTO guidelines to the letter.
Need Help with Your Utility Patent Drawings?
Get professional, USPTO-compliant drawings tailored to your invention. Visit InventionIP.com/utility-patent-drawings to get started. Our team ensures your drawings are precise, formatted correctly, and ready for submission.
